Precision CNC Flatbed Cutting Plotters for Global Manufacturers

Engineered by Mehta Hitech Industries Limited, our industrial flatbed digital knife cutting plotters eliminate physical dies, drastically reducing setup costs and delivery times for short-run packaging, automotive gaskets, signage, and technical textile manufacturing.

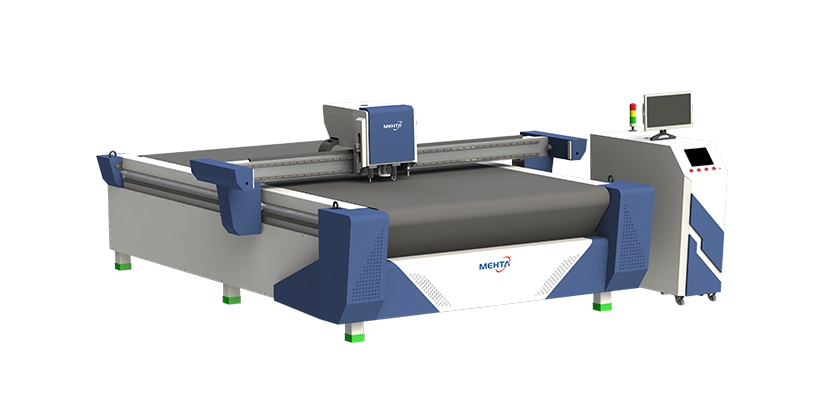

Conveyor Belt Flatbed Cutting Plotter

Automated continuous cutting platform equipped with an intelligent conveyor system. Built for continuous roll-fed or sheet-fed processing of corrugated boards, folded cartons, gaskets, and technical fabrics.

Max. Cutting Speed: Up to 3000 mm/s

Cutting Thickness: ≤ 50 mm

Command Mode: HP-GL Compatible / Vector Control

Automation: Auto-Feeder & Vacuum Conveyor Integration

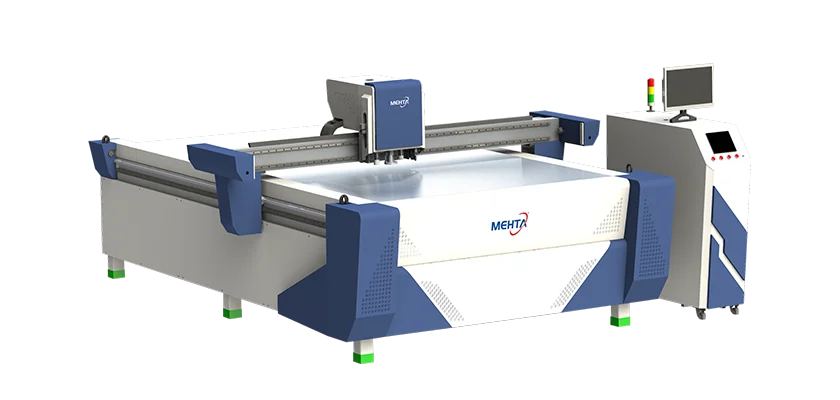

Static Belt Flatbed Cutting Plotter

High-precision fixed table cutter ideal for heavy rigid boards, prototyping, sample making, and thick industrial materials requiring absolute positioning accuracy.

Max. Cutting Speed: Up to 3000 mm/s

Cutting Thickness: ≤ 50 mm

Command Mode: HP-GL Compatible / Vector Control

Hold-Down: Multi-Zone Vacuum Suction Table

Versatile Cutting Tooling

Multi-Tool Head Configurations for Diverse Materials

Mehta flatbed digital cutting plotters feature modular multi-tool heads allowing seamless switching between cutting, creasing, scoring, and registration operations in a single pass.

Oscillating Knife Tool

High-frequency motor-driven knife designed to cut through dense, flexible, or soft materials up to 50mm thick with ultra-clean edges.

Creasing Wheel Tool

Engineered for corrugated and folding carton boards. Delivers clean, accurate fold lines without tearing surface paper fibres.

V-Cut & Kiss-Cut Tool

Adjustable angle cutting tools for precise V-grooves in honeycomb board and kiss-cutting pressure-sensitive vinyl stickers.

CCD Vision Camera

High-resolution optical registration system reads printed fiducial marks to auto-correct image distortion and guarantee contour cutting accuracy.

Engineering Specifications

Technical Performance Overview

Feature / Parameter	Conveyor Belt Configuration	Static Table Configuration
Max Cutting Speed	Up to 3000 mm/s	Up to 3000 mm/s
Maximum Cutting Depth	≤ 50 mm (Material dependent)	≤ 50 mm (Material dependent)
Cutting Precision	± 0.1 mm	± 0.1 mm
Control System / Format	HP-GL compatible format / Vector Controller	HP-GL compatible format / Vector Controller
Material Hold-Down System	Conveyorized Vacuum Suction Zone	Multi-Zone Sectional Vacuum Bed
Applicable Materials	Corrugated board, folding carton, vinyl, foam, gasket rubber, technical textiles, leather	Rigid PVC board, acrylic, honeycomb paperboard, thick rubber gaskets, sample boards
Interface & Drivers	Ethernet / High-speed USB / Network Port	Ethernet / High-speed USB / Network Port
Electrical Requirements	AC 220V/380V ± 10%, 50/60 Hz	AC 220V/380V ± 10%, 50/60 Hz

Manufacturing Excellence

Why Industrial Buyers Partner with Mehta Hitech

With over 25 years of engineering leadership, 15 ISO 9001:2015 certified production plants, and over 1,500 dedicated specialists, Mehta Hitech Industries Limited provides fully integrated material processing platforms built for demanding global production environments.

Rigid welded steel gantry structures designed to withstand heavy 24/7 industrial use.
Direct factory supply with complete CE compliance and standard international warranties.
Comprehensive remote diagnostics and fast-response technical assistance worldwide.
Proven commissioning across packaging, automotive, aerospace, sign, and leather manufacturing plants.

Global Standards

Tailored OEM & Export Support

Every Mehta flatbed cutter is manufactured in our Kathwada GIDC facility in Ahmedabad, India. We configure voltage, machine dimensions, vacuum zones, and tool accessories according to destination country standards (220V, 380V, 415V at 50/60Hz).

Factory Acceptance Testing (FAT), operator maintenance training, structural CAD/CAM software training, and pre-shipped spare-parts kits are included to guarantee immediate operational uptime upon delivery.
