Explore our engineering-grade, OEM-customizable vertical, universal, combined, and 5-axis milling machine platforms. Designed for rugged workshop duty, high-accuracy toolmaking, and complex industrial production.

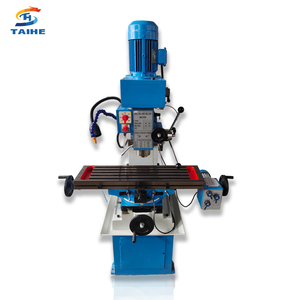

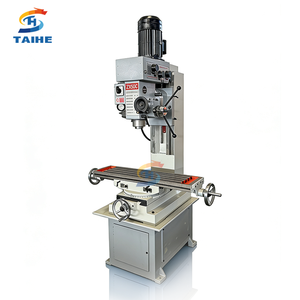

Versatile 5-in-1 industrial machine integrated for drilling, milling, boring, grinding, and tapping. Features robust gear-driven spindle head, heavy-duty Meehanite cast column, and multi-speed gear selectors.

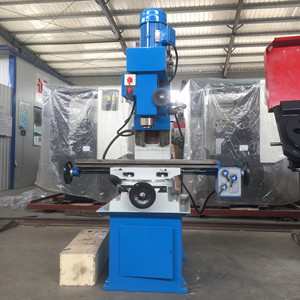

Compact footprint universal bench/pedestal drill mill machine engineered for precision repair shops and prototype prototyping. Swivel vertical head with manual fine feed control.

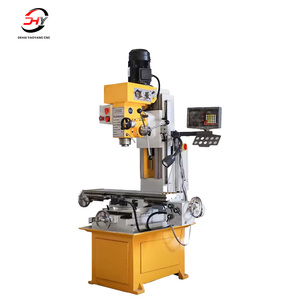

Production-ready metalworking drill mill equipped with factory-fitted 3-axis Digital Readout (DRO), power table feed, integrated coolant delivery system, and halogen work light.

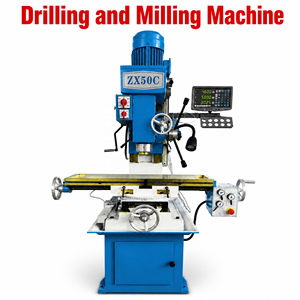

High-rigidity medium-duty milling machine featuring automatic quill feed, headstock swivel +/- 90 degrees, glass scale optical DRO, and hardened ground bedways for zero-play cutting.
Heavy-frame vertical gear head mill drill with industrial duty electric motor options (220V/380V/440V). Features rigid spindle quill with micro-depth stop indicator for batch tapping.
Cost-optimized, OEM-customizable metal cutting milling machine directly from verified manufacturing facilities. Engineered for high torque at low RPMs during tough metal removal operations.

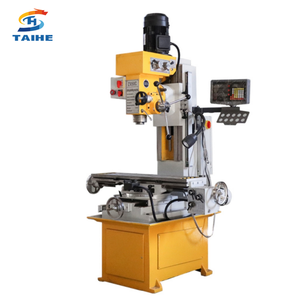

Compact industrial vertical drill mill built with modular assembly architecture. Allows custom OEM branding, custom paint schemes, specialized spindle tapers (R8/MT3/ISO30), and DRO choices.

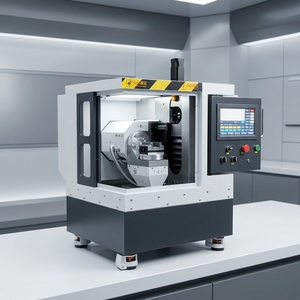

Ultra-precision micro 5-axis CNC machining platform with Rotation Tool Center Point (RTCP) simultaneous motion controller. Designed for intricate aerospace, medical implant, and dental milling.
In modern industrial manufacturing, selecting a reliable Custom OEM Milling Machine Supplier is a strategic decision that directly impacts operational yield, component machining tolerance, and overall Total Cost of Ownership (TCO). Milling machinery serves as the bedrock of machine tool building, automotive prototyping, mold and die fabrication, defense engineering, and job-shop precision tooling.
As industrial demands transition from conventional manual cutting to hybrid digital control and multi-axis CNC automation, global buyers require more than standard catalog machinery. They demand customized machine tool platforms tailored to specific motor voltages, spindle taper configurations (ISO40, BT40, R8, Morse Taper MT3/MT4), specialized table travels, integrated 3-axis Digital Readout (DRO) optics, and Rotation Tool Center Point (RTCP) 5-axis kinematics.
This technical whitepaper outlines structural casting standards (Meehanite HT300 cast iron), vibration damping mechanics, spindle dynamic balancing criteria (ISO 1940 G1.0 quality grade), and procurement evaluation protocols necessary when sourcing custom milling machines from OEM production plants in China and India.
Our manufacturing ecosystem operates across 15 certified production plants covering over 30,000 square meters of dedicated assembly, machining, and quality assurance space. Operating under strict ISO 9001:2015 quality management protocols and CE safety compliance directives, every milling machine undergoes comprehensive laser interferometer alignment, dynamic spindle balancing, and 48-hour continuous dry-run testing before export clearance.
Full customization capability covering custom color schemes, private-label branding, localized control panel languages, dual-voltage motors (110V/220V/380V/440V), and specialized bed lengths for non-standard workpieces.
Utilizing high-density Meehanite FC30 resin-bonded sand castings. All machine frames undergo natural stress-relieving aging cycles for over 6 months to prevent structural distortion during high-load heavy cutting.
Spindles are built with matched pairs of NSK or SKF P4-grade angular contact ball bearings, ensuring axial runout within ±0.003mm and thermal stability during continuous multi-shift production.
Guideways are induction hardened to HRC 48-52, precision hand-scraped, and coated with wear-resistant Turcite-B PTFE liner to eliminate stick-slip motion and maintain sub-micron positioning repeatability.
To assist procurement managers, machine tool distributors, and plant engineers in specifying the right equipment, the table below compares core structural and performance parameters across primary OEM product categories.
| Machine Category Platform | Max Drilling / Milling Dia. | Spindle Taper & Travel | Guideway Construction | Digital Readout (DRO) / CNC | Primary OEM Application |
|---|---|---|---|---|---|
| ZX50C Multi-Functional Series | Drill: Ø50mm / Mill: Ø100mm | ISO40 / MT4 (120mm Quill Travel) | Dovetail X/Y, Box Column Z | Optional 2/3-Axis Glass Scale DRO | General Machining, Maintenance, Tapping |
| ZX50 Mini & Combined Series | Drill: Ø31.5mm / Mill: Ø80mm | MT3 / R8 (110mm Quill Travel) | Hardened Dovetail Ways | Mechanical Dial / Optional DRO | Toolrooms, Educational Labs, Prototyping |
| 7025 DRO Heavy-Duty Series | Drill: Ø40mm / Mill: Ø100mm | ISO40 (130mm Quill Travel) | Wide Box Ways with Turcite-B | Factory Integrated 3-Axis DRO | Batch Production, Mold Die Cutting |
| Desktop 5-Axis RTCP CNC Series | Endmill: Ø10mm / Micro Tools | ER16 High-Speed (24,000 RPM) | Linear Roller Motion Guides | 5-Axis RTCP Simultaneous CNC | Aerospace Impellers, Dental, Jewelry |
As global supply chains re-align around automation, eco-efficiency, and digital traceability, the machine tool manufacturing sector is undergoing rapid technological transformation. Industrial procurement teams evaluating OEM suppliers must factor in several critical forward-looking trends:
Historically, simultaneous 5-axis CNC machining was restricted to massive industrial floor-type gantry centers. The market is now witnessing explosive growth in compact desktop and bench-scale 5-axis machines equipped with Rotation Tool Center Point (RTCP) algorithms. RTCP automatically compensates for the pivot point distance of rotary axes (A/C or B/C tables), allowing micro-manufacturers, dental laboratories, and aerospace R&D centers to produce complex 3D contoured surfaces without expensive post-processors.
While full CNC automation dominates mass production, medium-duty gear-driven mill-drill machines like the ZX50C series remain irreplaceable for single-piece repair work, secondary operations, and toolroom fixtures. Future procurement favors hybrid models featuring integrated optical glass scales, magnetic digital positioners, auto-feed gearboxes, and automated thread-tapping reversal cycles that reduce operator fatigue while preserving manual tactile control.
Environmental regulations and coolant disposal costs are driving factories away from flood coolant toward MQL dry-cutting systems. Modern OEM custom mills are increasingly specified with integrated aerosol MQL delivery nozzles, enclosed chip pan collection trays, and high-efficiency IE3/IE4 variable-frequency drive (VFD) main motors that reduce electrical energy consumption by up to 28% under continuous duty cycles.
Global machine tool brands are moving toward strategic partnership models with specialized Asian OEM factories. By utilizing standardized casting platforms, interchangeable spindle drives, and plug-and-play electrical cabinets, international distributors can receive custom-painted, private-labeled machinery certified under local regulatory frameworks (such as UL/CSA for North America and CE MD/EMC directives for Europe) with compressed lead times.
Our OEM machinery program supports custom motor voltages/frequencies (380V/50Hz, 220V/60Hz, 440V/60Hz 3-Phase or 110V/220V 1-Phase), specialized spindle taper selection (ISO40, BT40, R8, MT3), custom paint schemes (RAL colors), optical DRO brand integration (Sino, Easson, Rational), customized branding plaques, and extended bed travel lengths upon request.
All heavy structural components (column, base, worktable, milling head housing) are cast from fine-grain Meehanite FC30 cast iron. Castings undergo dual-stage thermal stress relief: high-temperature artificial annealing followed by minimum 6 months of outdoor natural weathering to completely dissipate internal mechanical stresses prior to precision machining.
RTCP stands for Rotation Tool Center Point. In 5-axis simultaneous machining, as the rotary axes incline and rotate, the physical tip of the cutting tool moves away from the target coordinate. RTCP continuously compensates for vector offsets in real-time within the CNC controller, allowing direct program execution based on tool tip geometry regardless of rotary pivot center points.
Machinery is treated with heavy-duty anti-rust oil VCI coating, wrapped in vacuum-sealed moisture-proof foil sheeting, and bolted to reinforced solid wooden skids inside ISPM-15 compliant fumigated plywood crates suitable for long-distance container sea shipping.
Every machine shipment includes a Factory Quality Inspection Certificate, Laser Interferometer Pitch Error Calibration Report, Spindle Dynamic Balance Test Log, Electrical Safety CE Test Report, Operation Manual in English, and an Itemized Spare Parts Manual.
