In the global industrial sector, selecting the optimal pipe cutting solution requires a rigorous evaluation of wall thickness, metallurgical composition, operational speed, thermal impact, and Total Cost of Ownership (TCO). As global infrastructure, HVAC, automotive manufacturing, aerospace, and energy transport networks evolve, the demand for precision pipe cutting technology sourced directly from leading Chinese OEM/ODM manufacturers has expanded exponentially.
This comprehensive B2B procurement whitepaper provides mechanical engineers, OEM buyers, project procurement managers, and wholesale distributors with empirical decision frameworks. From portable electric cold-beveling tools to 12kW+ high-power automatic 3-axis and 3-chuck fiber laser tube cut cells, China’s industrial ecosystem offers unmatched manufacturing capacity, standardized ISO 9001:2015 quality control, and CE-compliant execution.
Explore top-tier equipment categories spanning heavy-duty CNC fiber lasers, cold cutting bevelers, and manual alloy tools.

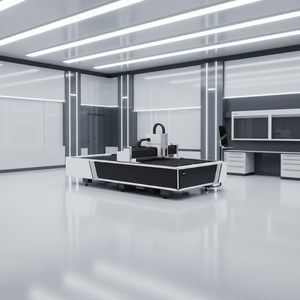

Supports PLT/DWG/DXF industrial formats. Features auto-centering pneumatic chucks and dual-purpose plate and pipe cutting capability for structural steel, stainless, and aluminum profiles.

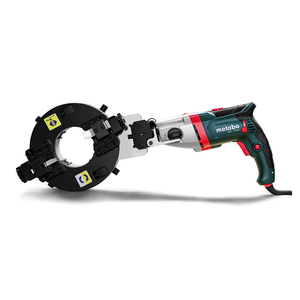

Engineered for cold cutting and precise beveling on site. Prevents heat-affected zones (HAZ) in high-pressure oil, gas, and chemical pipeline installations.

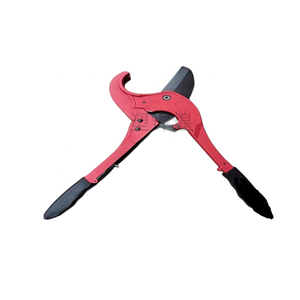

High-leverage ratchet scissors with heat-treated manganese alloy steel blades. Designed for burr-free rapid cutting of thermoplastic plumbing tubes.

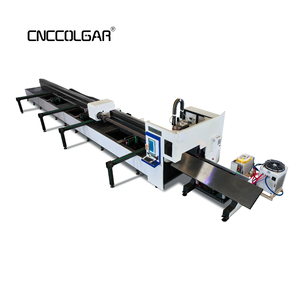

Built for heavy structural tubes up to 13m lengths. High-power laser head combined with 360mm heavy pneumatic chucks for thick-wall metal processing.

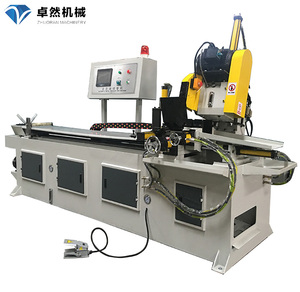

Integrated multi-functional pipe bending and cutting system. Available with lithium battery cordless operation for utility maintenance and infrastructure setups.

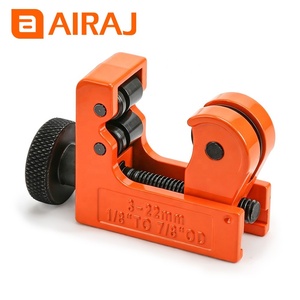

Features dual bearing rollers and ultra-sharp alloy steel cutting wheel. Delivers smooth, deformation-free tracking on small-diameter HVAC copper tubing.

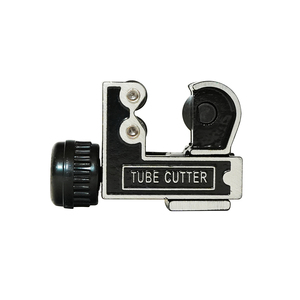

Designed for tight space installations. High-durability feed screw mechanism guarantees precise, square cuts on brass, copper, thin-wall stainless steel, and aluminum.

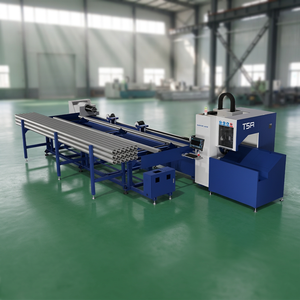

Innovative three-chuck pneumatic clamping system achieves zero tailing waste, cutting raw material costs by up to 15% on high-volume production lines.
A comparative technical guide for choosing between Fiber Laser, Cold Beveling, and Manual Alloy Cutting technologies based on substrate metallurgy, wall thickness, and output metrics.
| Cutting Technology | Target Substrates | Wall Thickness Range | Cutting Speed & Efficiency | Edge Quality & HAZ | Primary Industrial Applications |
|---|---|---|---|---|---|
| CNC Fiber Laser (3-Chuck) | Carbon Steel, Stainless, Aluminum, Brass | 0.5mm – 25.0mm | Ultra-High (Up to 120m/min positioning) | Burr-free, zero HAZ (Assist N2/O2), Ra < 3.2 µm | Structural framing, automotive chassis, heavy machinery, fitness equip. |
| Portable Electric Cold Cutter | High-pressure alloy pipes, Seamless steel | 3.0mm – 45.0mm | Medium (Field operation setup: 5-15 min/cut) | Cold cut, zero thermal effect, perfect 30°/37.5° bevel | Petrochemical pipelines, nuclear power, offshore rig maintenance |
| Automatic Circular Saw / Bend Cut | Mild Steel, Non-ferrous profiles | 1.0mm – 12.0mm | High (Mechanical stroke: 4-12 sec/cut) | Mechanical shear edge, slight burr requiring deburring | HVAC frames, furniture manufacturing, conduit tubing lines |
| Manual Alloy Ratchet / Bearing Tool | Copper, Brass, Aluminum, PPR/PVC | 0.8mm – 4.5mm | Manual / Field Work | Square clean cut, clean deformation-free lip | Residential plumbing, refrigeration service, gas fitting |
When global B2B procurement heads and OEM distributors evaluate pipe cutting machinery suppliers in China, the decision rests on verifiable engineering integrity, vertical integration, robust quality assurance frameworks, and long-term lifecycle support. Leading Chinese manufacturers operate advanced assembly hubs across 30,000+ square meters of unified production space, housing CNC machining centers, laser calibration labs, dynamic balancing testers, and dry-run inspection cells.
Every machine line—from hand-operated copper tubing cutters to 12kW multi-axis fiber lasers—adheres strictly to ISO 9001 quality management standard procedures, Lean Sigma assembly workflows, and European CE safety directive compliance.
Full vertical integration ensures machine beds undergo stress-relief annealing in 600°C electric furnaces, preventing structural warping over 10+ years of 24/7 continuous industrial operation.
Export packaging incorporates seaworthy vacuum foil sealing, reinforced steel-skid wooden crating, custom customs clearance documentation, remote commissioning support, and guaranteed fast-tracked spare part logistics.
As industrial procurement transitions from standalone tool purchases to automated, data-connected smart factory solutions, buyers must align their machinery specifications with emerging technological shifts. Key market drivers reshaping Chinese pipe cutting manufacturing include:
Traditional 2-chuck laser cutters leave 150mm–300mm of unusable pipe end (tailing). Modern 3-chuck and 4-chuck sync-moving laser tube systems enable continuous cutting across chuck transfers, achieving absolute zero tailing waste. For high-value alloy tubes, this technology yields immediate ROI within months.
To eliminate secondary grinding prior to robotic welding, advanced fiber laser tube cutters now integrate 3D 5-axis cutting heads capable of swinging ±45°. This allows precise V-type, Y-type, and K-type bevel creation directly on round, square, and oval steel tubes in a single pass.
Automated material handling solutions—including automatic bundle loaders, seam detection sensors, and intelligent CAD/CAM nesting software (such as TubePro / CypCut)—allow continuous unmanned operation, driving down labor overhead while optimizing tube yield.
In chemical plants, oil refineries, and municipal gas upgrade projects, flame cutting or grinding is strictly restricted due to explosive risks. Demand for portable electric split-frame cold pipe cutting and beveling machines has surged due to their spark-free operational profile.
Optimizing operational efficiency during laser pipe cutting depends heavily on matching laser source wattage (IPG, Raycus, Maxphotonics) with proper assist gas pressures.
Primary mechanism: Exothermic reaction cut for thick carbon steel pipes.
Primary mechanism: High-pressure melt-and-blow mechanism for oxide-free finish.
Primary mechanism: Economical alternative for thin to medium wall tubing.
Answers to critical procurement, customization, technical support, and warranty inquiries.
The decision depends primarily on production location, pipe wall thickness, volume, and material type. Fiber Laser Tube Cutters are ideal for high-volume factory environments cutting complex profiles (round, square, rectangular, D-shapes) with wall thicknesses up to 25mm, offering unmatched speed and multi-hole nesting capabilities. Conversely, Portable Electric Cold Cutters are essential for field construction, pipeline repair, and thick-wall (>25mm) applications where heat-affected zones (HAZ) are prohibited or on-site mobility is required.
Yes. Leading Chinese pipe cutter manufacturers offer comprehensive OEM/ODM services for global brand owners and distributors. Customization scope includes custom machine color schemes, private label chassis branding, specialized voltage configurations (e.g., 220V/380V/415V/480V 3-Phase), customized software UI localization, custom chuck clamping diameters, and tailored automated loading magazine sizes.
In a 3-chuck laser cutting system (Front, Middle, and Rear pneumatic chucks), the tube is supported continuously across two chucks at any given moment. During the final cutting phase of a raw tube, the middle and front chucks clamp the work-piece while the rear chuck advances past the cutting head. This allows the laser head to cut directly between or adjacent to the chuck jaw faces, eliminating the unclampable dead-zone remnant found on traditional 2-chuck machines and saving up to 15% in material costs.
Standard B2B export terms include a 2-year to 3-year full factory warranty covering the laser source, CNC controller, servo drives, and bed structure. Technical support is backed by 24/7 multilingual online diagnostic help, remote desktop commissioning, dedicated engineer on-site dispatch services, and localized spare part hubs stocking fast-moving consumables (protective lenses, ceramic rings, laser nozzles, cutting wheels, and pneumatic seals).
Manufacturers provide full factory acceptance testing (FAT) protocols. Buyers receive live HD video dry-runs, laser interferometer accuracy calibration reports (verifying positioning accuracy down to ±0.03mm), cut-sample dimension verifications using coordinate measuring machines (CMM), and 72-hour continuous burn-in test documentation before container loading.
Connect directly with senior application engineers to receive custom machine specifications, material test cut samples, ROI calculation models, and factory wholesale price lists.
