Direct Factory Supply for Heavy-Duty Woodworking, PCB Milling, Soft Metals, and Architectural Molding
Technical Whitepaper: Evaluating Gantry Rigidity, Spindle Torque Dynamics, and Precision Kinematics
When global B2B buyers search for a reliable China Wholesale Milling Router Manufacturer & Supplier, the procurement decision hinges on structural integrity, thermal stability, controller dynamic algorithms, and total cost of ownership (TCO). CNC milling routers are the operational workhorses of modern manufacturing, spanning high-frequency PCB micro-drilling, architectural millwork, non-ferrous metal cutting (aluminium and brass), custom cabinet manufacturing, and 3D reliefs.
As industrial demand transitions toward higher velocity machining (HVM) and tighter dimensional tolerances (less than ±0.02 mm), evaluating OEM factory specs requires going beyond basic motor wattage. Machine bed stress-relieving, linear guide preloading, spindle runout controls, and motion control bus synchronization dictate whether a CNC router maintains micron-level repeatability across 24/7 multi-shift operations.
| CNC Milling Router Class | Target Substrates | Optimal Spindle Specs | Drive System Architecture | Key Industrial Application |
|---|---|---|---|---|

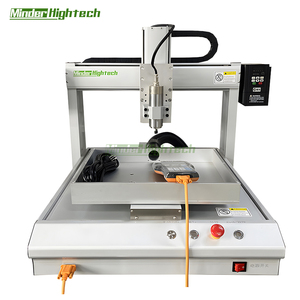

| High Precision PCB / Electronics | FR4, Rogers, Copper Laminates | 40,000–60,000 RPM Air-Bearing | Linear Motors / Precision Ball Screws | PCB Prototyping & High-Density Routing |

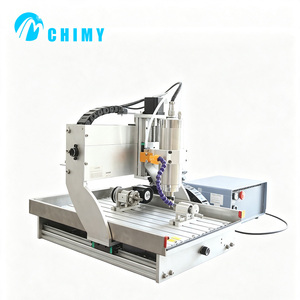

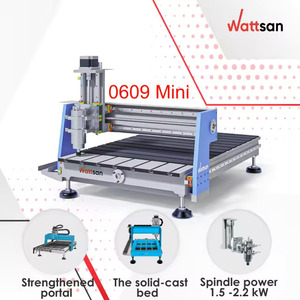

| Desktop / Mini CNC Series (6090) | Acrylic, Hardwood, Soft Metals | 1.5kW – 2.2kW Water/Air Cooled | High-Torque Stepper / Hybrid Servo | Educational R&D, Jewelry & Small Components |

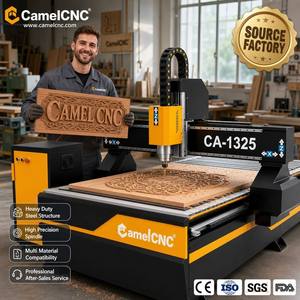

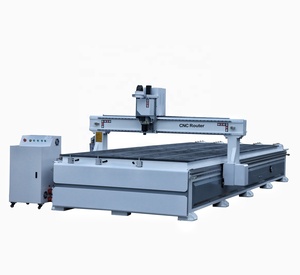

| Heavy-Duty Woodworking (1530/2040) | MDF, Solid Wood, Composite Board | 3.5kW – 9.0kW ATC Spindle | Helical Rack & Pinion + Yaskawa Servo | Custom Furniture, Cabinetry & Door Panels |

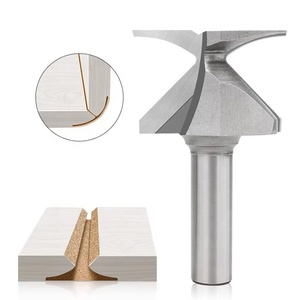

| Architectural & V-Groove Folding | Aluminium Composite (ACP), MDF | High-Torque Carbide Bit Modules | Heavy Gantry Dual-Drive Servos | Seamless Bending, Wall Cladding & Signage |
Key Structural Shifts Reshaping Global B2B Equipment Sourcing Strategies
Global fabricators are moving away from single-function machinery. Modern wholesale procurement emphasizes hybrid CNC platforms capable of switching between mechanical carbide milling spindles and fiber/CO2 laser heads within a unified gantry system, reducing floor footprint by up to 35%.
Legacy pulse-direction controllers are rapidly being replaced by high-speed EtherCAT digital bus systems. This enables real-time synchronization between 3-axis to 5-axis motion, dynamic look-ahead acceleration algorithms, and sub-millisecond error correction during complex 3D carving.
Tier-1 manufacturers are integrating vibration accelerometers, spindle temperature thermistors, and automatic tool length measurement sensors into wholesale router packages. Live telematics alert operators to tool wear before cutter breakage damages workpieces.
Manual tool changing is becoming obsolete even in mid-market job shops. Linear and disc-type 8-to-16 tool ATC carousels combined with high-frequency ISO30/BT30 spindles are now baseline requirements for scaling cabinet and panel production.
Energy management standard compliance requires smart matrix vacuum tables. Multi-zone software-controlled solenoid valves automatically direct negative pressure only to active cutting zones, reducing vacuum pump power consumption by over 40%.
Global procurement teams prioritize manufacturers offering total in-house fabrication—from raw steel frame annealing to final laser interferometer calibration—eliminating third-party trading markups and ensuring long-term spare parts availability.
How Cutting-Edge Engineering Resolves Complex Manufacturing Bottlenecks
The foundation of any high-precision milling router lies in its gantry structural frame. Premium Chinese manufacturers utilize thick-walled tubular steel structures or heavy cast-iron beds that undergo vibrational stress relief and high-temperature furnace annealing (over 600°C). This process eliminates internal welding stresses, guaranteeing that the frame will not warp or twist over decades of dynamic loading.
Following heat treatment, structural mating surfaces are processed on multi-axis pentahedron CNC machining centers in a single setup. This ensures absolute parallelism for linear motion rails and perpendicularity across X, Y, and Z axes.
Expert Guidance to Solve Real-World Procurement, Technical, and Operational Inquiries

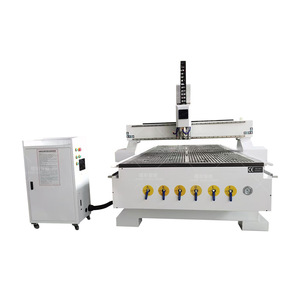

Water-cooled spindles (typically 1.5kW to 5.5kW) operate at significantly lower noise levels and maintain precise temperature control via chilled water recirculators, making them ideal for high-RPM precision work (PCB micro-drilling, fine carving). Air-cooled spindles (3.5kW to 9.0kW+) use fan circulation, making them simpler to install, virtually freeze-proof in colder climates, and highly suited for dusty woodworking environments where liquid plumbing is undesirable.
For entry-level operators and smaller workshops, entry-level controllers like Mach3, Mach4, or handheld DSP controllers offer straightforward G-code loading via USB with low learning curves. For high-throughput industrial plants, advanced bus controllers such as Syntec, Weihong, or Siemens PLC systems are recommended. These feature dynamic look-ahead vector processing, multi-spindle control, automated tool measurement, and seamless integration with factory ERP systems.
Ball screws (TBI/HIWIN) on all axes deliver highest axial precision (±0.01 mm) and zero backlash, ideal for smaller bed sizes (6090, 1212) and PCB micro-routing. For large-format tables (1530, 2040, 2060), high-precision helical rack and pinion on X/Y axes combined with ball screw on Z axis provides the optimal balance—enabling rapid traverse speeds up to 50,000 mm/min without mechanical whip or positioning degradation.
Reputable manufacturers must perform rigorous quality checks including 24-hour continuous dry-run burn-in tests, laser interferometer axis positioning alignment, squareness dial-indicator measurement, dynamic spindle balance testing, and full dielectric insulation safety checks. Always request ISO 9001:2015 certification and CE compliance documentation prior to sea freight shipment.
Daily maintenance includes sweeping dust out of linear guide rails and blowing out spindle cooling channels. Weekly routines involve checking automatic lubrication reservoir levels, draining water traps from compressed air lines, and inspecting vacuum pump oil. Quarterly audits require verifying gantry alignment, checking belt tension on servo drives, and measuring spindle runout with a dial indicator.
Yes. With adequate spindle torque (minimum 2.2kW–5.5kW), rigid bed construction, and an integrated oil-mist coolant sprayer system, CNC milling routers cleanly process aluminium sheet plate, brass plates, and copper heat sinks. Using single-flute solid carbide bits specifically designed for non-ferrous metals prevents chip welding and ensures a smooth surface finish.
Uncompromising Quality Control, Custom OEM Engineering & Global Lifecycle Support
Backing every machine supplied is an enterprise infrastructure built over 25 years of engineering innovation. Operating from state-of-the-art ISO 9001:2015 certified production campuses spanning tens of thousands of square meters, our manufacturing groups combine lean production discipline with continuous R&D investment.
Strict lean manufacturing practices ensure every milling router conforms to European CE directives and international safety standards.
From frame welding and thermal annealing furnaces to final precision milling of rail beds, key components are built under direct quality oversight.
Tailored bed dimensions, multi-head configurations, custom spindle power ratings, and proprietary software branding for international distributors.
Comprehensive operator training, sea-worthy export crating, remote diagnostic assistance, and guaranteed long-term consumable parts dispatch.
Contact our senior CNC application engineers today for factory-direct wholesale pricing, custom machine specifications, and material trial sample cuts.
