Engineered with micro-vacuum suction beds, continuous white ink recirculation, and precise variable-droplet piezo printhead architecture. Explore our industrial-grade DTF machinery built for continuous 24/7 manufacturing environments.
Combining over 25 years of advanced precision engineering with ISO 9001:2015 production quality controls, Lean Six Sigma methodologies, and certified CE Directive safety protocols.
Operating out of a massive 30,000+ sq. m. industrial facility in Kathwada GIDC, Ahmedabad, our production workflow encapsulates CNC machining, chassis stress-relieving, electronic harness assembly, and 72-hour continuous dry-run testing before export dispatch.
Our Direct-to-Film (DTF) and UV DTF equipment strictly adheres to European Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU, featuring optical safety curtains, emergency stop relays, and low-noise vacuum pumps.
Backed by 17 domestic service offices and an international network of factory-trained distributors across Europe, North America, the Middle East, and Africa. We deliver remote PLC diagnostics, spare-parts dispatch, and on-site engineering setup.
An authoritative analysis of printhead fluidics, vacuum bed dynamics, white ink sedimentation control, and AI-assisted optical positioning for high-yield industrial decoration.
In standard inkjet printing, organic pigments remain suspended in aqueous or solvent vehicles with minimal agitation. However, Direct-to-Film (DTF) white inks rely on heavy titanium dioxide (TiO2) nanoparticles to establish the high optical density required for under-base masking on dark textiles and rigid substrates.
TiO2 particles possess a high specific gravity, causing rapid settling within fluid lines, damper reservoirs, and printhead micro-channels during idle cycles. Unchecked sedimentation leads to piezo-actuator clogging, nozzle drop-outs, and catastrophic head failure. Our CE Certified DTF printers implement a multi-tier active recirculation loop:
Substrate stability is the defining factor in achieving micro-step registration accuracy during multi-pass printing. Lightweight PET films and thin crystal transfer release liners are highly susceptible to thermal expansion and air turbulence generated by adjacent UV-LED curing units.

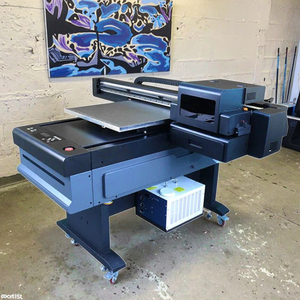

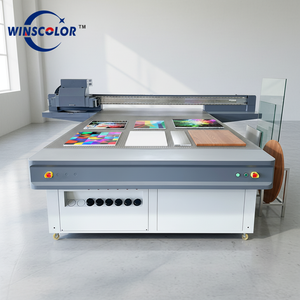

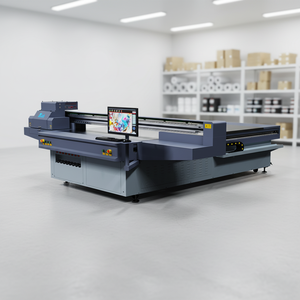

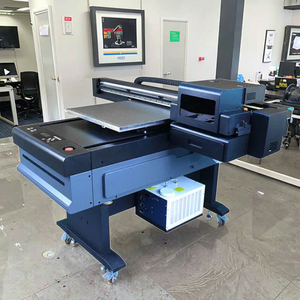

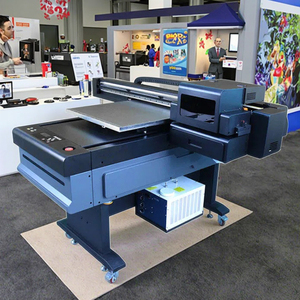

To eliminate film cockling and media drift, our industrial 6090 and 2030 series feature high-torque honeycomb aluminum vacuum tables equipped with zoned suction channels. The structural platform undergoes high-precision CNC surface milling, achieving a flatness tolerance within ±0.03 mm across the entire working envelope. This rigid foundation prevents printhead strikes, safeguarding delicate 2.5-picoliter nozzle arrays while executing 1440 dpi photo-realistic prints.
Selecting the optimal printing system depends heavily on substrate geometry, ink adhesion mechanics, and post-processing thermal resistance. The decision matrix below summarizes core industrial parameters:
| Technical Parameter | Standard Fabric DTF | UV DTF (Crystal Sticker) | Direct UV Flatbed |
|---|---|---|---|
| Primary Media Target | Cotton, Polyester, Blends, Canvas | Curved/Irregular Glass, Metal, Acrylic | Rigid Flat Panels (Wood, ACP, Glass) |
| Ink Curing Mechanism | Hot-Melt TPU Powder + Heat Press | Instant UV-LED (395nm Wavelength) | Instant UV-LED (395nm Wavelength) |
| Adhesion Mechanics | Thermal Elastomeric Polymer Bonding | Pressure-Sensitive Acrylic Adhesive (A/B Film) | Direct Chemical / Silane Primer Bond |
| Geometry Versatility | Flexible Apparel & Soft Goods | 3D Irregular, Cylindrical, Tapered Objects | Strictly Flat / Planar Surfaces (< 5mm height var) |
| Scratch & Wash Durability | 50+ Industrial Wash Cycles | High Weatherability & Scratch Resistance | Industrial Solvent & UV Degradation Resistance |
| Tactile / 3D Relief | Soft, Flexible Hand-Feel | High Gloss 3D Varnish Layering | Embossed Texture & Braille Capabilities |

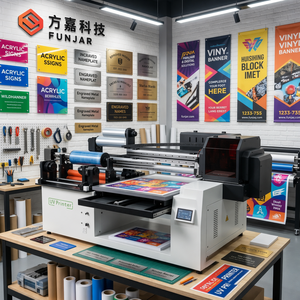

Next-generation hybrid manufacturing mandates automated alignment to slash setup times and eliminate human operational error. Our 2026 Direct Factory Industrial A1 6090 UV DTF Printer incorporates dual high-definition CCD cameras mounted directly on the gantry beam.
The onboard AI algorithm scans registration targets on pre-cut transfer sheets, automatically recalculating print path coordinates to compensate for rotated or slightly distorted media placement. This capability is pivotal for batch production of crystal logos, personalized promotional items, and industrial nameplates.
Strategic insights for procurement directors, factory managers, and equipment distributors planning capital equipment investments for 2026 through 2030.

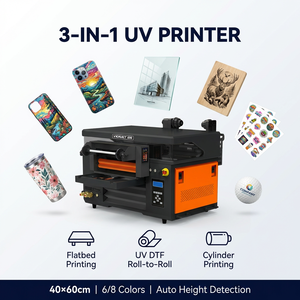

Procurement preference is shifting rapidly away from single-purpose machines toward 2-in-1 hybrid architectures. Equipment capable of printing continuous roll-to-roll UV DTF film (Film A to Film B inline lamination) while maintaining a removable flatbed vacuum suction table allows factories to pivot between rigid panel printing and flexible transfer sticker production on a single factory floor footprint.
Environmental legislation in the European Union (REACH / RoHS) and North America is tightening VOC emission thresholds. Future-proof factories are adopting low-odor, REACH-compliant UV-LED inks paired with high-efficiency catalytic ozone scrubbers. CE-certified factories that integrate green ink chemistry lower regulatory compliance risks for international exports.
While traditional textile DTF relies on TPU powder shaker ovens, research and development is accelerating toward powderless DTF chemical binders jetting directly through dedicated printhead channels. This eliminates airborne particulate hazards in print shops, reduces electrical consumption by up to 40%, and yields an ultra-soft hand-feel on lightweight apparel.
Modern production facilities require cloud-connected telemetry. Industrial DTF printers now stream real-time operational data—such as ink consumption per square meter, piezo voltage drift, LED lamp thermal stability, and vacuum pressure metrics—enabling predictive maintenance alerts before expensive printhead damage or batch rejects occur.
Future UV DTF platforms are expanding beyond 2D graphics into tactile textured finishes. By jetting high-viscosity clear varnish layers prior to final UV-LED curing, suppliers can produce localized embossing, braille lettering, and authentic leather/wood grain textures directly onto crystal transfer film for luxury packaging customization.
In-depth engineering answers addressing compliance, installation, maintenance, and operational cost parameters for institutional buyers and distributors.
A genuine CE Certification for DTF and UV DTF printers requires rigorous compliance under two core European Directives: the Machinery Directive (2006/42/EC) and the Electromagnetic Compatibility Directive (2014/30/EU). Factory compliance involves:
Thin PET transfer films (75μm to 100μm thickness) are highly sensitive to thermal gradient changes from heat beds and UV curing lamps, which can cause the film to bow upward (cockling). An integrated vacuum suction platform pulls negative air pressure through thousands of micro-perforated bed holes, securing the media perfectly flat against the aluminum bed.
This prevents media ripples from contacting the moving carriage, ensuring a consistent nozzle-to-substrate distance (typically set at 1.5mm to 2.0mm) and eliminating bi-directional registration errors.
To ensure 24/7 reliability in 6-color systems (CMYK + White + Varnish), our machinery utilizes automated maintenance routines:
Industrial UV DTF and flatbed printers require controlled operating environments for optimal drop ejection velocity and ink curing:
Export orders undergo a comprehensive ocean-freight preparation protocol:
